Lately I have found several high quality videos on YouTube with time lapses of wind farms constructions.
I have decided to take some screenshots and use them to create a very basic BoP visual dictionary. You can click on the pictures to make them bigger.
Enjoy!
Crane and auxiliary crane lifting a steel tower section:
A rotor fully assembled on the ground before erection. It start to be an outdated practice due to current rotors size and weight:
The different areas of a crane pad in a wind farm in Australia (Goldwind's Cattle Hill):

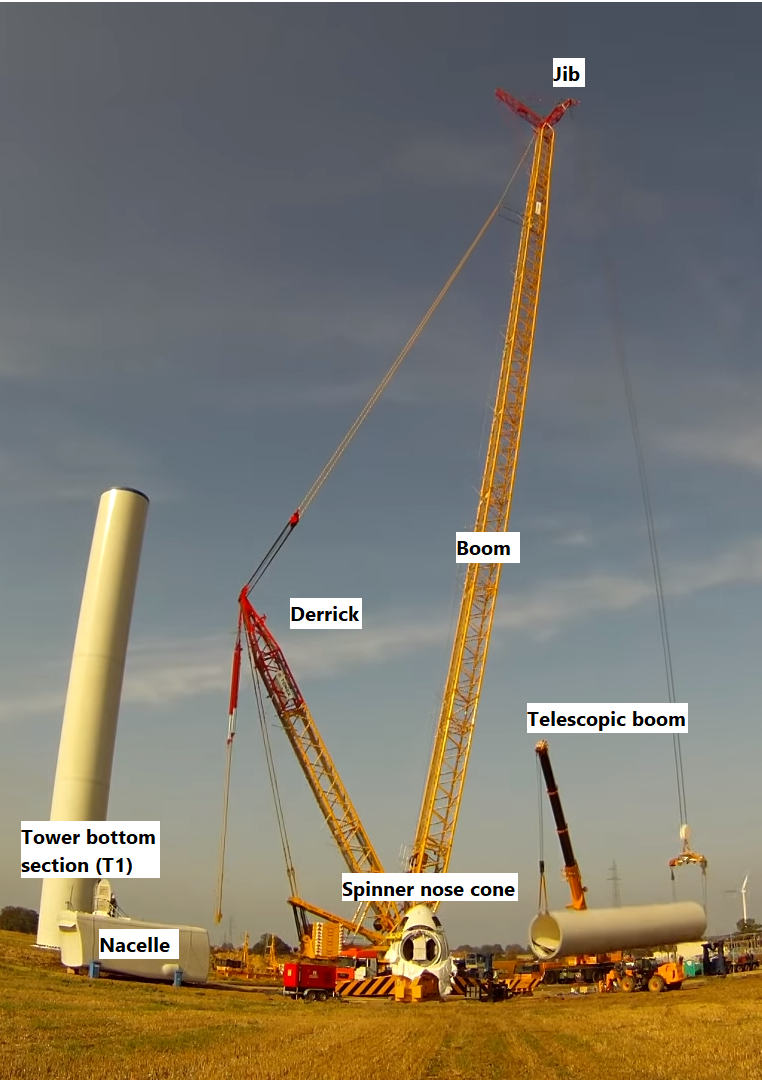

Main crawler crane and its elements:
A blade lifted by an auxiliary crane. One of the workers is under a suspended load - not a best practice:
Workers completing the anchor cage assembly:
